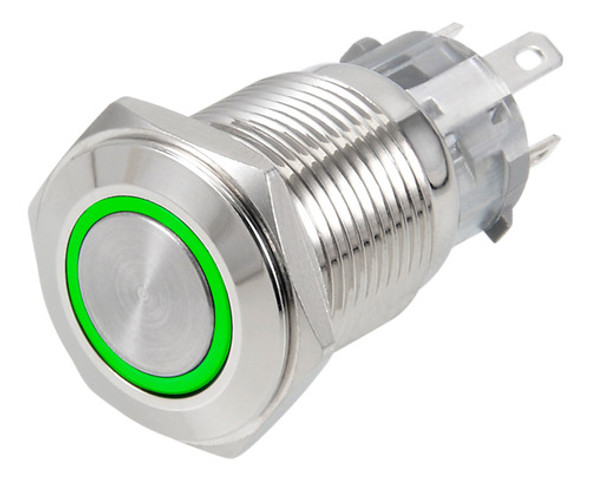

Adichip.net Metal LED Push Button with Retention - 16mm Green

Shop Boton Pulsador De Metal Led Con Retención - 16mm Verde and more Botones Industriales at Latinafy.com

Discover the robust and stylish 16mm Metal LED Push Button with Retention from Adichip.net! Designed for durability, this button is easy to install with a simple 16mm drill hole in materials up to 1/2" thick. It features a flat metal actuator and a green LED ring for visual feedback. With 3 contacts for varied configurations and built-in resistance for LED use, it's perfect for a range of applications. Waterproof and built to last, this button is a top choice for your electronic projects.

The Adichip.net Metal LED Push Button with Retention is not only robust but also adds a touch of style to your electronic setups. Measuring 16mm in diameter, this push button is designed to fit a drill hole of the same size, making it easy to install in materials up to 1/2" thick. Its stunning chrome finish enhances its durability while a rubber gasket ensures water-tight protection for your installations. The button features a flat metal actuator surrounded by a vibrant green LED ring, providing clear indication when activated. Notably versatile, this button integrates three contacts for normal open (NO) and normally closed (NC) configurations, along with two terminals for the LED connection. It is perfect for use at voltages of 3 to 6V, accommodating higher voltages like 12V or 24V with the addition of a 470-ohm resistor. Designed for a long life with more than 500,000 mechanical actuations and 50,000 electrical cycles, this button operates efficiently within a temperature range of -20°C to +55°C, making it an excellent choice for various conditions. With an impressive IP67 waterproof rating, it’s perfectly suited for outdoor and demanding applications.

Usage ideas This Metal LED Push Button is ideal for a variety of applications including control panels, machinery, and DIY electronic projects. Use it in automotive systems for reliable on/off operations, in home electronics to enhance your control interfaces, or as part of a professional-grade control system in industrial settings. Its waterproof design makes it perfect for outdoor installations as well.

Frequently asked questions
What is the size of the button?: The button has a diameter of 16mm.
How does the LED work?: You can connect the LED to a voltage of 3 to 6V, with an internal resistor for safe lighting. For higher voltages like 12V or 24V, simply add a 470-ohm resistor in series.
Is this button waterproof?: Yes, it is rated IP67, ensuring it is water resistant.
What is the operating temperature range?: The button operates effectively between -20°C to +55°C.
Can the LED be activated independently from the button?: Yes, the switch and LED connections are separate, allowing for flexible wiring options.

- Brand: Adichip.net
- Item Condition: New
- Model: 16mm Push Button with Retention IP67
- SKU: MLA695198294
- Sales Format: Unit
- Units per Pack: 1
- Product Type: Metal LED Push Button with Retention Green
- Length: 36 mm
- Width: 16 mm
- Weight: 13 g
- Included Accessories: O-ring
- Material: Stainless Steel
- Water Resistant: Yes
- Voltage: LED 6V, usable with 12V, 24V up to 220V with resistors
- Power Type: Electrical Current
- With Light: Yes
- Protection Grade: IP67
- Operating Temperature Range: -20 C to +55 C°
- Button Type: Metal Push Button

Vendor listing title: Boton Pulsador De Metal Led Con Retención - 16mm Verde
