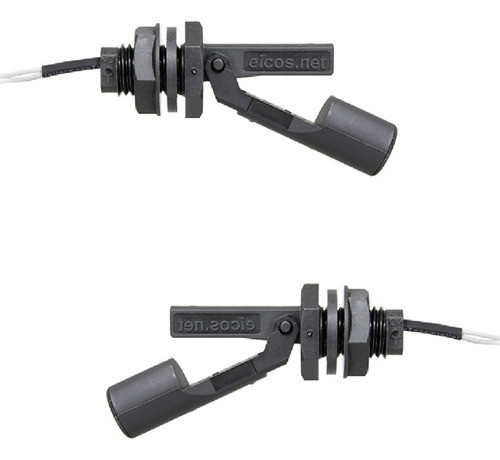

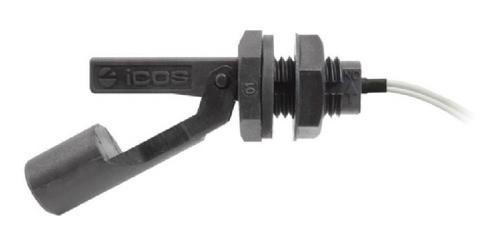

Eicos LA36M-40 Liquid Level Sensor Up to 125ºC

Shop Sensor De Nível P/ Líquidos Até 125ºc Eicos La36m-40 Cabo 2m and more Sensores de Fluxo de Água at Latinafy.com

The Eicos LA36M-40 Liquid Level Sensor is designed to accurately monitor liquid levels in your reservoir. With a temperature tolerance of up to 125°C, this sensor is perfect for various applications. It features a magnetic float that opens and closes an electrical contact, providing an ON/OFF signal once the liquid level is reached. Installation is straightforward, requiring a 16mm diameter hole on the tank's interior. With a robust design and IP66 protection, it's built to last in demanding environments.

Introducing the Eicos LA36M-40 Liquid Level Sensor, an essential tool for monitoring liquid levels with precision. This sensor operates by employing a magnetic float that opens or closes an electrical contact, signaling when the desired liquid level has been reached. It is particularly effective in temperatures ranging from -10°C to 125°C, making it suitable for a wide variety of applications, including industrial settings. The sensor is designed for installation within a 16mm diameter hole on the tank's side, ensuring a secure fit and reliable performance. Constructed from high-quality PPA (Polyphthalamide) with a robust nylon lock nut ensures durability, along with a water pressure rating of up to 2 bar. The sensor's output features a 40cm cable with an SPST electrical configuration, while its IP66 protection rating guarantees resistance to dust and water ingress. The Eicos LA36M-40 also includes a NBR sealing washer for an additional layer of protection. With a maximum wall thickness of 9mm for the reservoir and a minimum radius of 150mm for cylindrical tanks, this sensor is adaptable to various installation requirements. Enjoy a 2-year warranty when you opt for this reliable liquid level sensor.

Usage ideas This liquid level sensor is ideal for monitoring fuel levels in tanks, managing water reservoirs, and controlling liquid chemical systems in industrial applications. It's suitable for use in HVAC systems, agricultural settings, and laboratories where precise liquid levels are crucial. The robust design makes it perfect for both indoor and outdoor applications, operating effectively even in harsh environments.

Frequently asked questions
question: Can you provide a receipt for my purchase?
answer: Yes, we issue receipts for all purchased products.

- Brand: Eicos
- Condition: New
- Model: LA36M-40
- SKU: LA36M-40
- Thread Diameter: 16 mm
- Maximum Flow Rate: 100 l/min
- Maximum Water Pressure: 2 bar
- Minimum Flow Rate: 100 l/min
- Minimum Operating Temperature: 10 °C
- Maximum Operating Temperature: 125 °C
- Minimum Voltage: 5V
- Maximum Voltage: 220V

Vendor listing title: Sensor De Nível P/ Líquidos Até 125ºc Eicos La36m-40 Cabo 2m
