EICOS Sensor De Nível LA322E-M12 P/ Tanques Sem Acesso Interno

Shop Sensor De Nível La322e-m12 P/ Tanques Sem Acesso Interno and more Sensores de Fluxo de Água at Latinafy.com

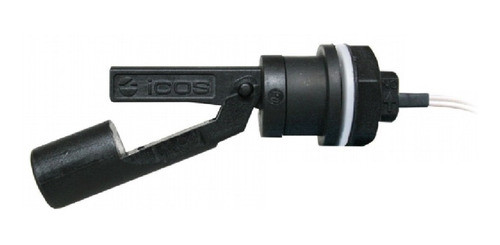

The EICOS LA322E-M12 Level Sensor is designed for external tank installation, making it ideal for monitoring liquid levels safely and efficiently. It features a magnetic float mechanism that activates an ON/OFF electrical signal based on the liquid level. Capable of withstanding temperatures up to 125°C, this sensor offers reliable operation in varied conditions. Its compact design fits through a 22mm hole, ensuring ease of installation while maintaining effective performance. With a robust build and IP66 protection, you can trust this level sensor for your monitoring needs.

The EICOS LA322E-M12 Level Sensor is an innovative solution for monitoring liquid levels in tanks without requiring internal access. It operates using a magnetic float that opens or closes an electrical contact, allowing for precise level detection. This sensor is ideal for external installation, fitting snugly into a Ø22mm hole on your tank wall. The durable materials used, including PPA and special sealing washers, ensure that the sensor remains secure and operational in demanding environments with pressures up to 2 bar and temperatures ranging from -10°C to 125°C. Designed with ease of integration in mind, the sensor connects via a male M12 plug. Note that for every desired liquid level height, you will require a separate level sensor. The IP66 protection rating guarantees that it is well-suited for outdoor conditions, resisting dust and water ingress. A two-year warranty underlines our commitment to quality and reliability, making the LA322E-M12 an excellent investment for your liquid monitoring needs.

Usage ideas Use this level sensor for liquid management in various applications, including water tanks, chemical storage, and industrial processes. It's perfect for creating automated systems that alert you when liquid levels reach critical thresholds. Ideal for both residential and commercial setups, the LA322E-M12 can help optimize resource management and prevent overflow situations.

Frequently asked questions
What is the maximum temperature this sensor can withstand?: The sensor can operate in temperatures up to 125°C.
How is the sensor installed?: The LA322E-M12 sensor is installed externally on the tank through a Ø22mm hole.
What type of materials are used in the construction of the sensor?: The sensor is made of PPA with a sealing washer in NBR rubber, ensuring durability and reliability.
What is the protection rating of the sensor?: The sensor has an IP66 protection rating, making it resistant to dust and water.
Do I need a separate sensor for each liquid level I want to monitor?: Yes, each desired liquid level requires its own LA322E-M12 sensor.

- Brand: EICOS
- Item Condition: New
- Model: LA322E-M12
- Thread Diameter: 22 mm
- Maximum Water Flow: 2 l/min
- Maximum Water Pressure: 2 bar
- Minimum Water Flow: 2 l/min
- Minimum Working Temperature: 0 °C
- Maximum Working Temperature: 120 °C
- Minimum Voltage: 5V
- Maximum Voltage: 220V
- Measurement Technology: Sensor

Vendor listing title: Sensor De Nível La322e-m12 P/ Tanques Sem Acesso Interno
