Description

Shop Diagramas Reparo Ecus Pinout Para Banquear and more Otros at Latinafy.com

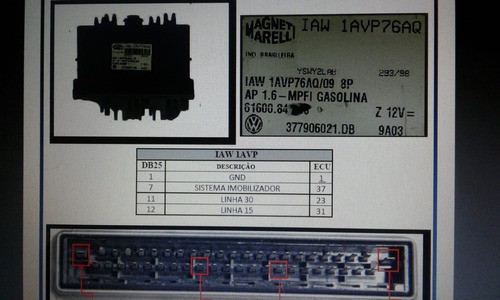

Discover essential pinout diagrams designed for ECU connection testing. These diagrams streamline the process of connecting ECUs for testing on the bench. Easily identify power sources and ground connections, ensuring safe and effective testing. Each diagram is meticulously crafted to help you troubleshoot various vehicle models with confidence. Perfect for automotive technicians and enthusiasts looking to enhance their diagnostic capabilities.

Unlock the power of precise testing with our comprehensive collection of ECU pinout diagrams. Each diagram serves as an invaluable resource for automotive professionals and enthusiasts alike, enabling seamless connection of ECUs for bench testing. The diagrams highlight critical information such as power supplies, ground connections, and necessary wiring for a variety of vehicle models, ensuring you have all the details at your fingertips. With these diagrams, you can conduct tests with simplicity and accuracy, paving the way for effective troubleshooting and diagnostics. No matter your vehicle’s make or model, our diverse range of pinout diagrams caters to the needs of both conventional and electronic throttle body systems. Whether you’re diagnosing issues in a Chevrovlet, Ford, or Hyundai, you’ll find the necessary schematics to aid your evaluation. Each diagram is presented in a user-friendly format that is easy to reference and implement, making it suitable for those who may be new to ECU testing as well as seasoned professionals. Empower yourself with the knowledge needed to tackle automotive challenges efficiently with our pinout diagrams.

Usage ideas Use these pinout diagrams for effective ECU testing and troubleshooting in garages and workshops. Ideal for automotive technicians needing clear schematics for quick diagnostics. Enhance your understanding of vehicle electronics by studying these diagrams. Perfect for DIY enthusiasts restoring and repairing vehicles. A valuable addition to any automotive knowledge library.

Frequently asked questions
Hola, do you have the pinout diagram for a Kangoo K4M with electronic throttle?: Yes, we have the pinout diagram for the Continental ECU related to the Kangoo.
What format are the diagrams available in, and what are the prices for diesel and gasoline versions?: The diagrams are available in digital format. Please contact us for specific prices for diesel and gasoline versions.
Do you have the ECU details for a 2008 Chevrolet S10?: Yes, we have diagrams for the S10 with Bosch EDC 16C9 or EDC 16C39.
Do you offer diagrams for a 2001 Chevrolet Vectra 2.2 16v CD?: Unfortunately, we do not have the diagram for that model at the moment.
Can you provide the pinout for a Ford Ranger 2.0 from 2015?: The publication relates to gasoline ECUs. Please check for your specific model.
